Breadboards

Breadboards enable rapid prototyping of circuits without the need for soldering.

Robot Tips Breadboard Prototyping How it works

13 April 2023 by Kevin McAleer | Share this article on


Breadboards enable rapid prototyping of circuits without the need for soldering.

Imagine creating your very own electronic circuits, controlling dazzling lights, or even building simple robots! Breadboards make all of this possible for beginners and experts alike. In this article, we will delve into the fascinating world of breadboards. We’ll learn about their history, how they work, and the benefits and limitations they offer to those eager to explore the realm of electronics.

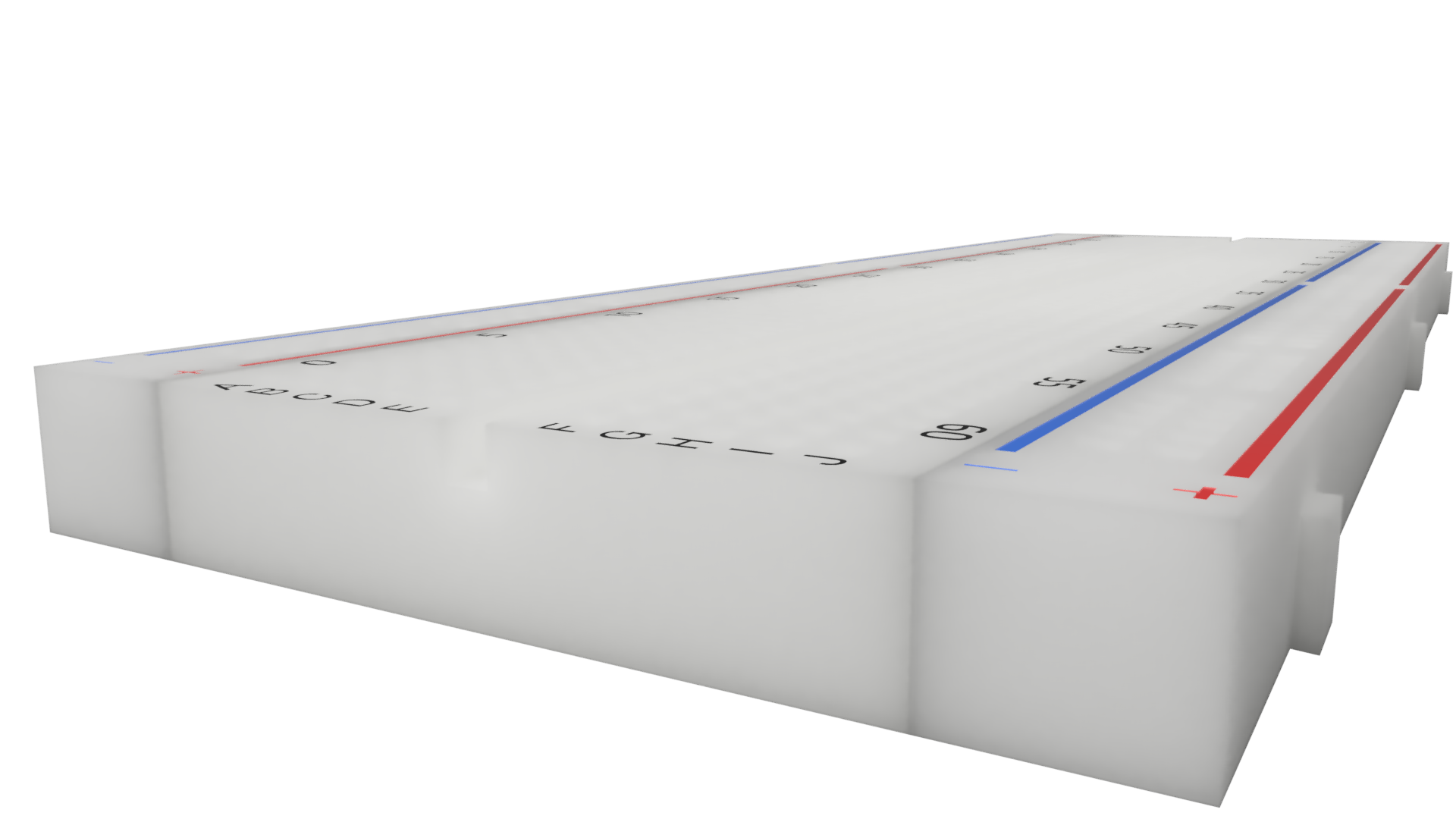

Breadboard


A Brief History of Breadboards

Breadboards have a captivating history that dates back to the early days of electronics. The name “breadboard” originated from a time when people would actually use wooden bread cutting boards to build their electronic circuits. They would place components like resistors, capacitors, and transistors on the wooden surface and connect them with wires. Thankfully, today’s breadboards are much more user-friendly and practical!

The modern breadboard, made of plastic and metal, was invented in the 1960s. It was designed to provide a reusable platform for rapid prototyping and testing of electronic circuits. Since then, breadboards have become an essential tool for electronics hobbyists, students, and professionals.


How Breadboards Work

Breadboards are rectangular boards featuring a grid of small holes. Beneath the surface, metal strips connect these holes in a specific pattern, allowing components to be electrically connected without the need for soldering. The holes are typically spaced 0.1 inches apart, which is the standard spacing for most electronic components.

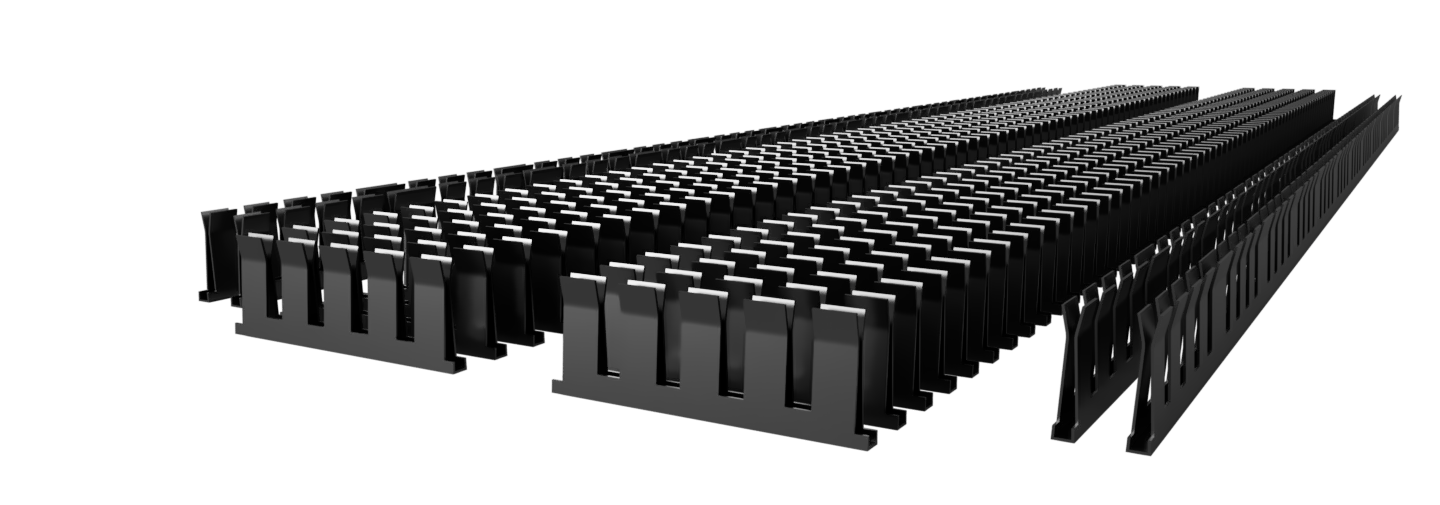

Breadboard Breadboard Cutaway

To create a circuit, simply insert the leads of your electronic components, such as resistors, capacitors, and integrated circuits, into the holes on the breadboard. The metal strips underneath create the connections necessary for your circuit to function.

Breadboards are often divided into different sections, including:

  • Power Rails: These are the rows of holes running along the top and bottom of the breadboard, usually marked by red and blue lines. The red line represents the positive voltage supply, while the blue line represents the ground or negative voltage.

  • Terminal Strips: These are the rows of holes in the middle of the breadboard. They’re used to connect individual components, forming the primary part of your circuit.

  • Bus Strips: Some breadboards have extra columns, called bus strips, which can be used to distribute power, ground, or other common signals.

Breadboard Cutaway


Benefits of Breadboards

Easy to use: Breadboards require no soldering, making them accessible to beginners and those without specialized equipment.

  • Reusability: Components and wires can be easily removed and reused in other projects, making breadboards cost-effective and environmentally friendly.

  • Quick prototyping: Breadboards allow for rapid assembly and testing of circuits, enabling users to quickly identify and correct errors.

  • Flexibility: Breadboards can accommodate a wide range of electronic components, allowing users to create a vast array of circuits.


Limitations of Breadboards

  • Limited current capacity: Breadboards are not suitable for high-current applications, as the metal strips may overheat or become damaged.

  • Unreliable connections: Breadboard connections can be less secure than soldered connections, which can lead to intermittent or unreliable circuit behavior.

  • Limited frequency range: Breadboards are not ideal for high-frequency or radio-frequency circuits, as the metal strips can introduce unwanted capacitance and inductance.

  • Not suitable for permanent projects: Breadboards are designed for prototyping, and circuits built on them may not be durable enough for long-term use.


Conclusion

Breadboards are a fantastic tool for anyone interested in exploring the world of electronics. Their ease of use, reusability, and flexibility make them an excellent choice for beginners and experts alike. While they do have some limitations, they provide a solid foundation for learning the basics of electronic circuits and experimenting with different components.

As you progress in your electronics journey, you may eventually need to explore other methods for creating more permanent and reliable circuits, such as soldering or using printed circuit boards (PCBs). However, breadboards will always have a special place in the hearts of electronics enthusiasts, serving as a gateway to the exciting world of circuit building and sparking creativity in the minds of countless hobbyists, students, and professionals.

So, grab a breadboard, some components, and start exploring the endless possibilities of electronic circuit design!
