Create the Top Corner

Learn how to create the top corner piece for the mini-rack

By Kevin McAleer,    1 Minute

Top Design

  1. Create a new file named top_corner in Fusion 360

  2. Create a new sketch on the XY plane, named top_base

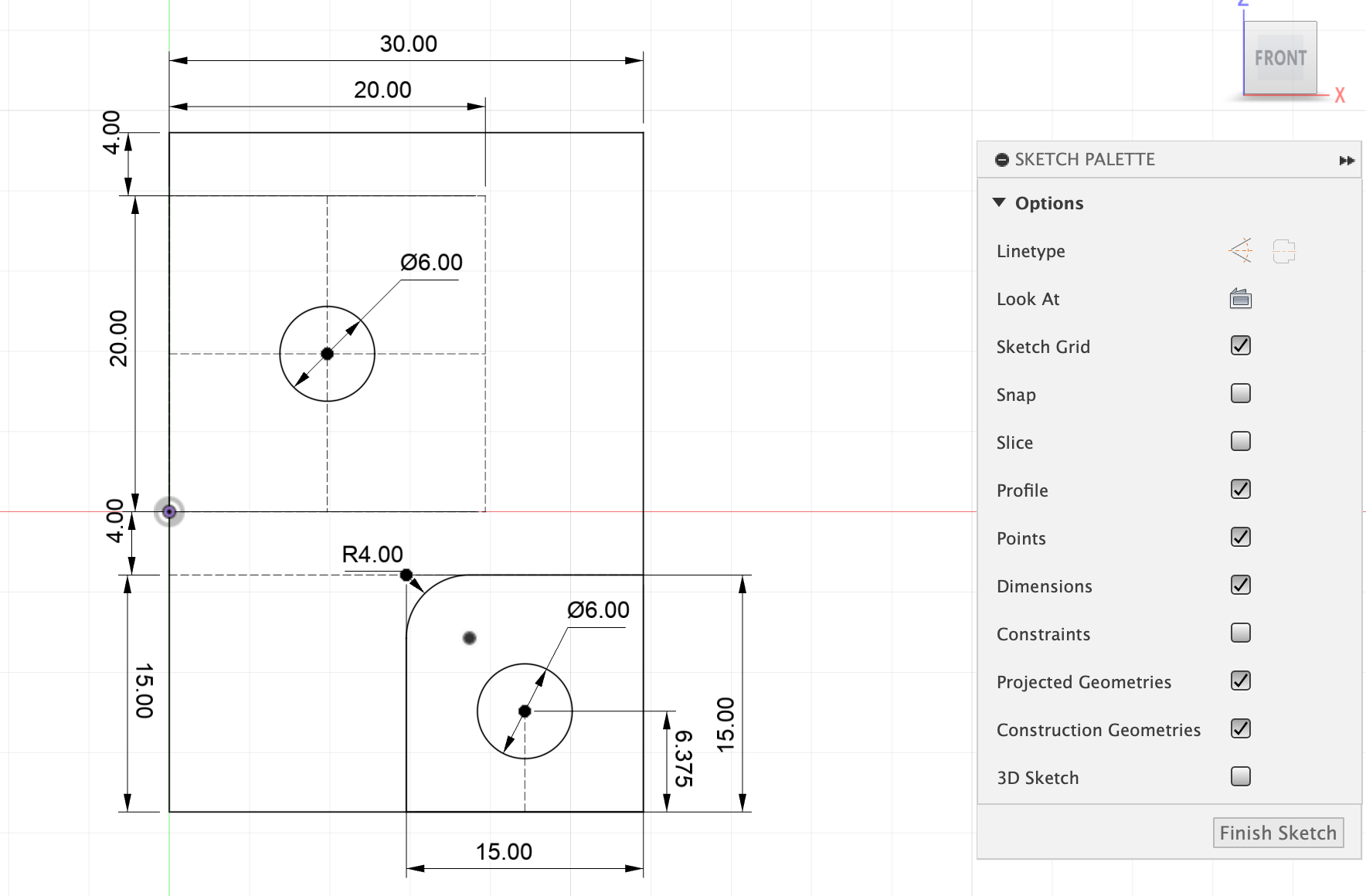

  3. Create the following sketch:

    dimensions

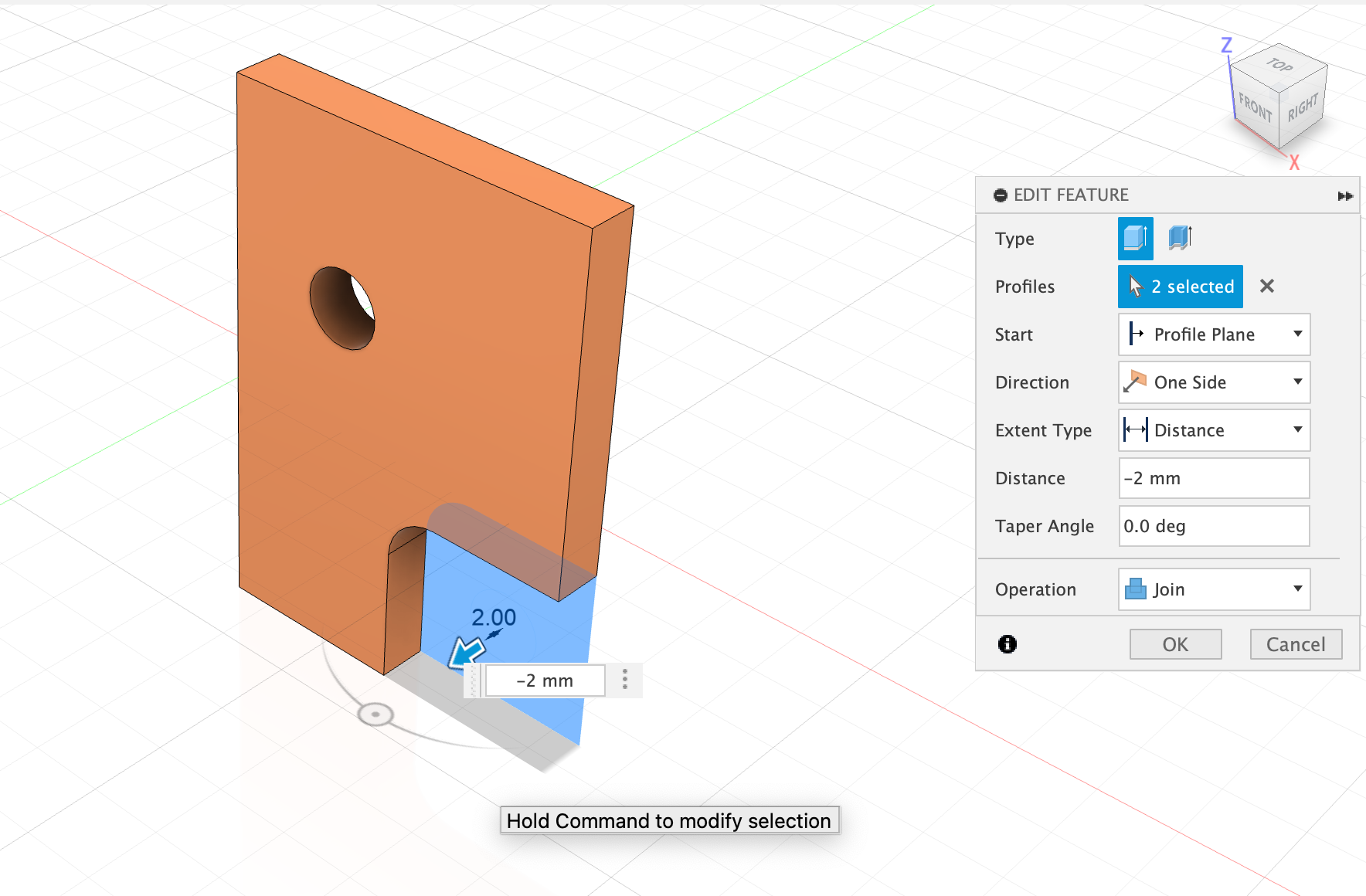

  4. Extrude the body profile by 4mm:

    Extrude

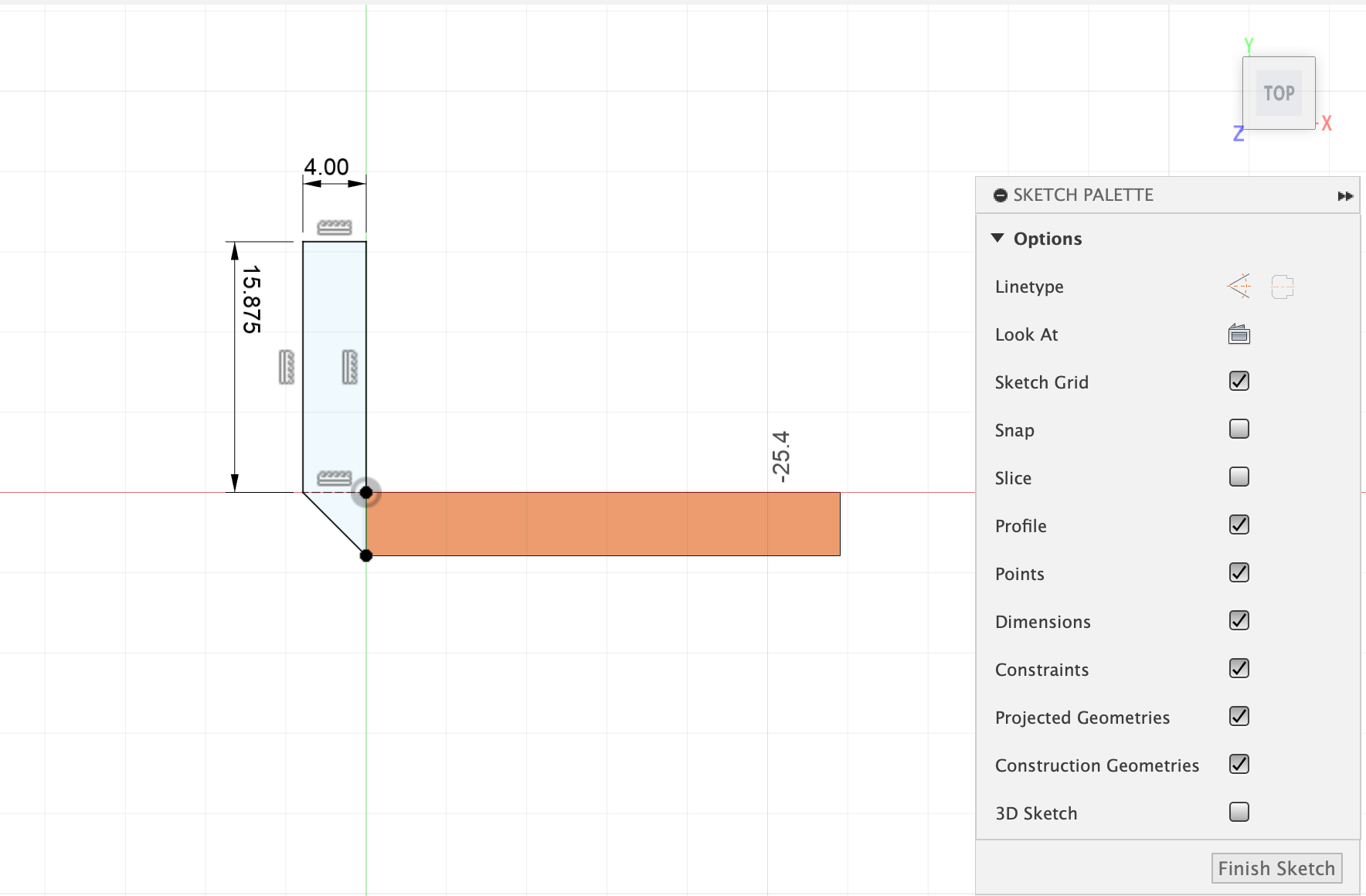

  5. Create a sketch on the top of the new part, named top_profile

    Sketch

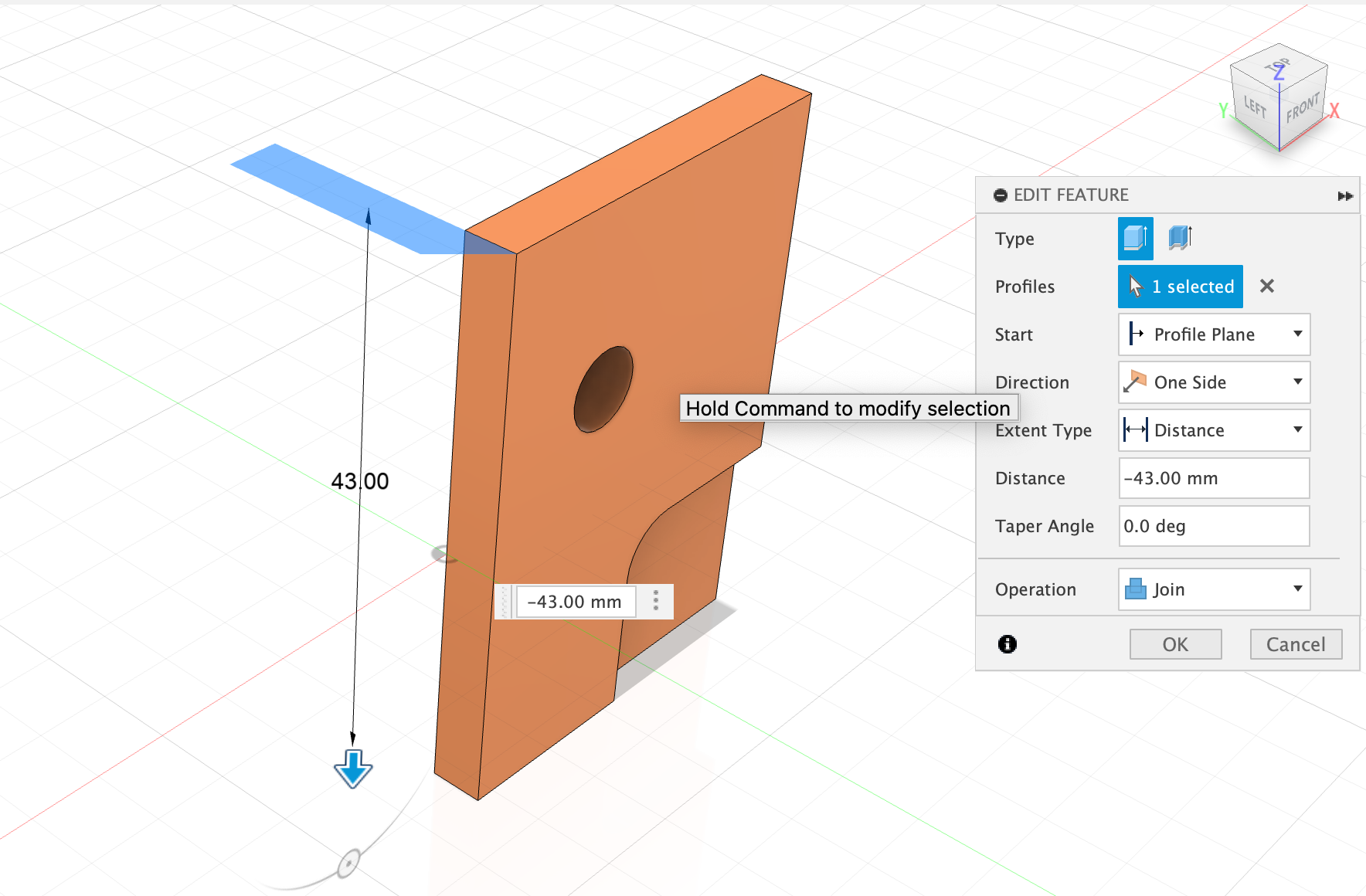

  6. Extrude the sketch:

    Extrude

  7. Create a new sketch on the top of the body, named side holes

    Sketch

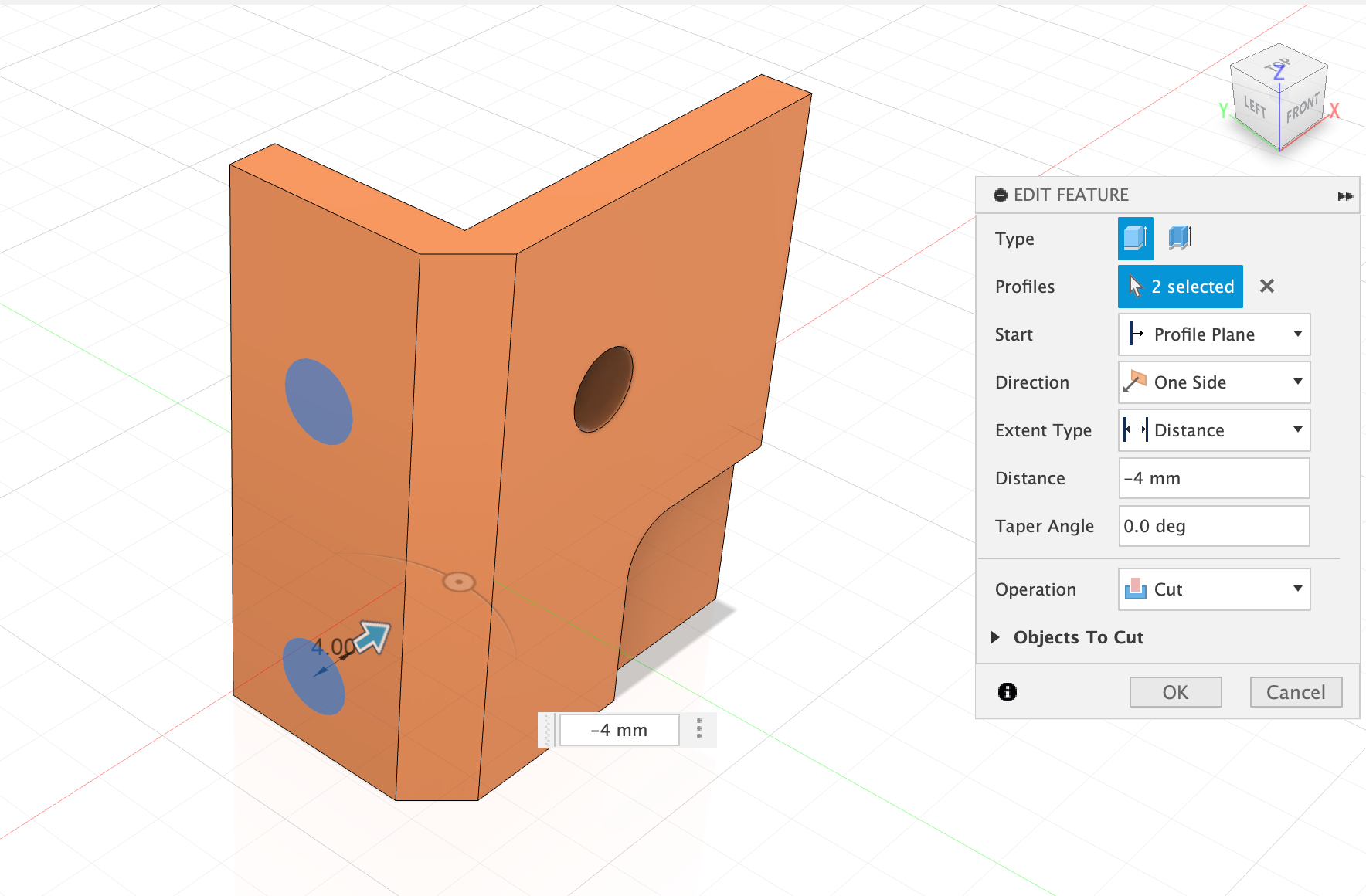

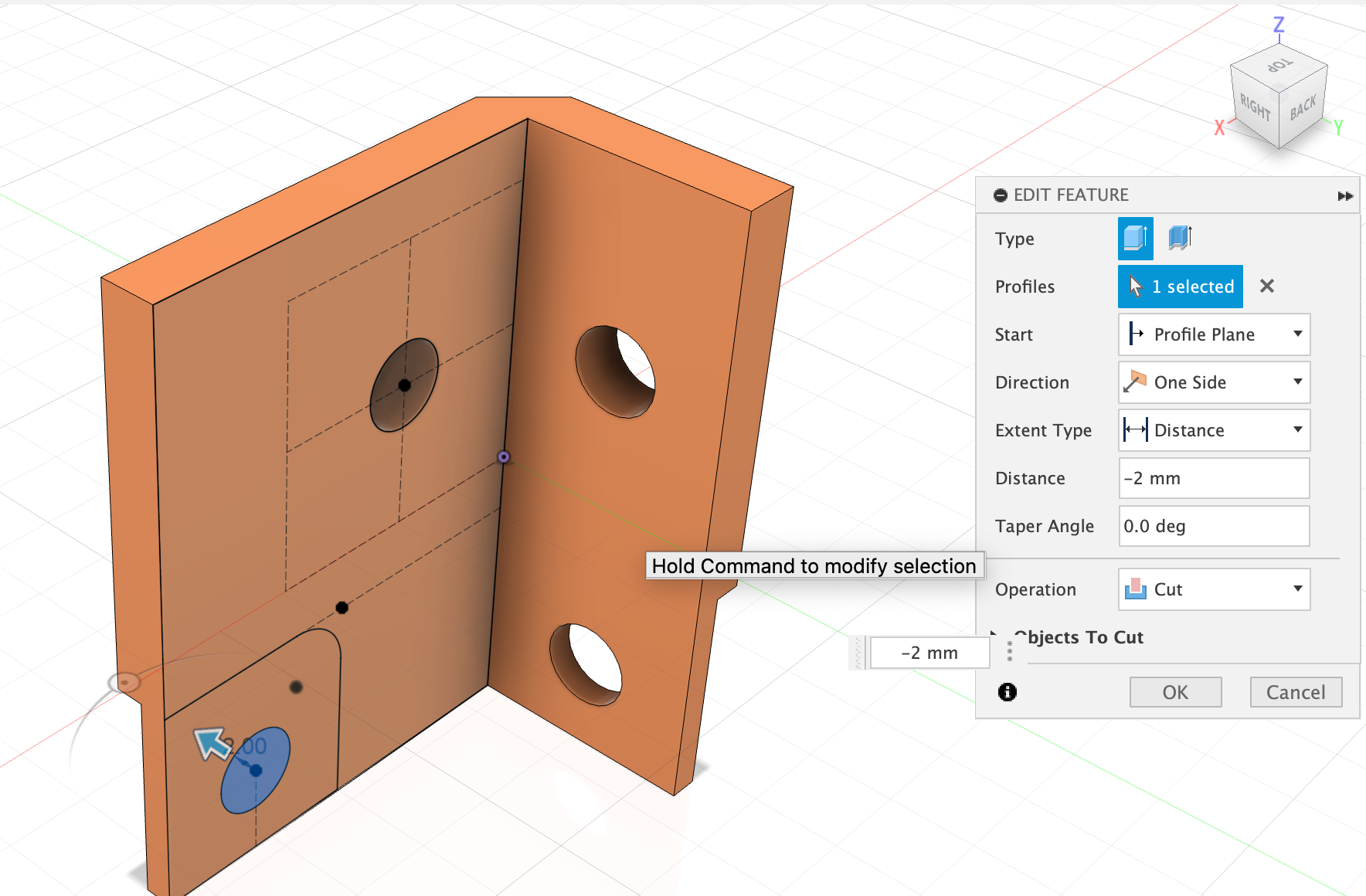

  8. Extrude the sketch:

    Extrude

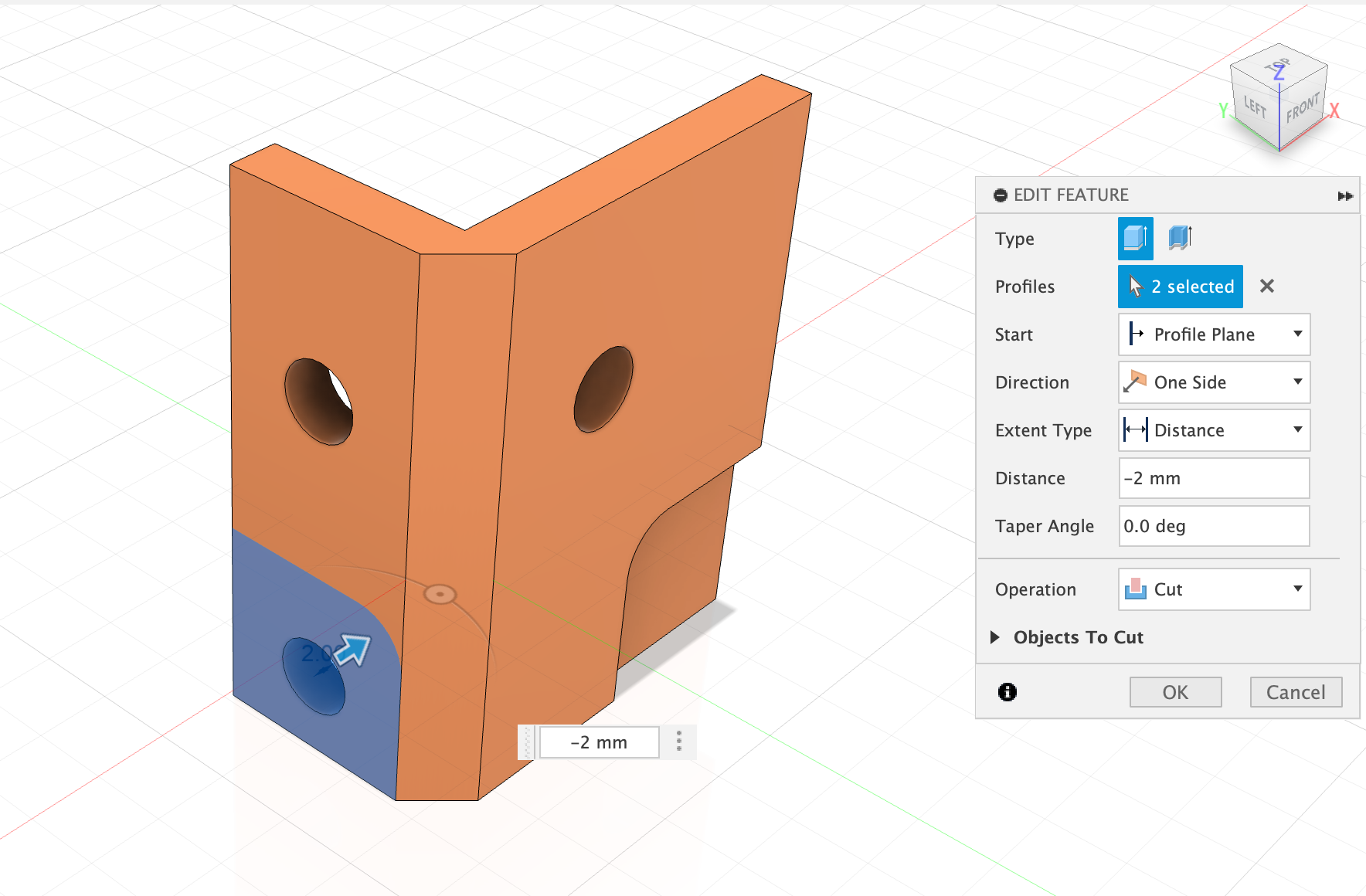

  9. Extrude the sketch:

    Extrude

  10. Extrude the sketch:

    Extrude

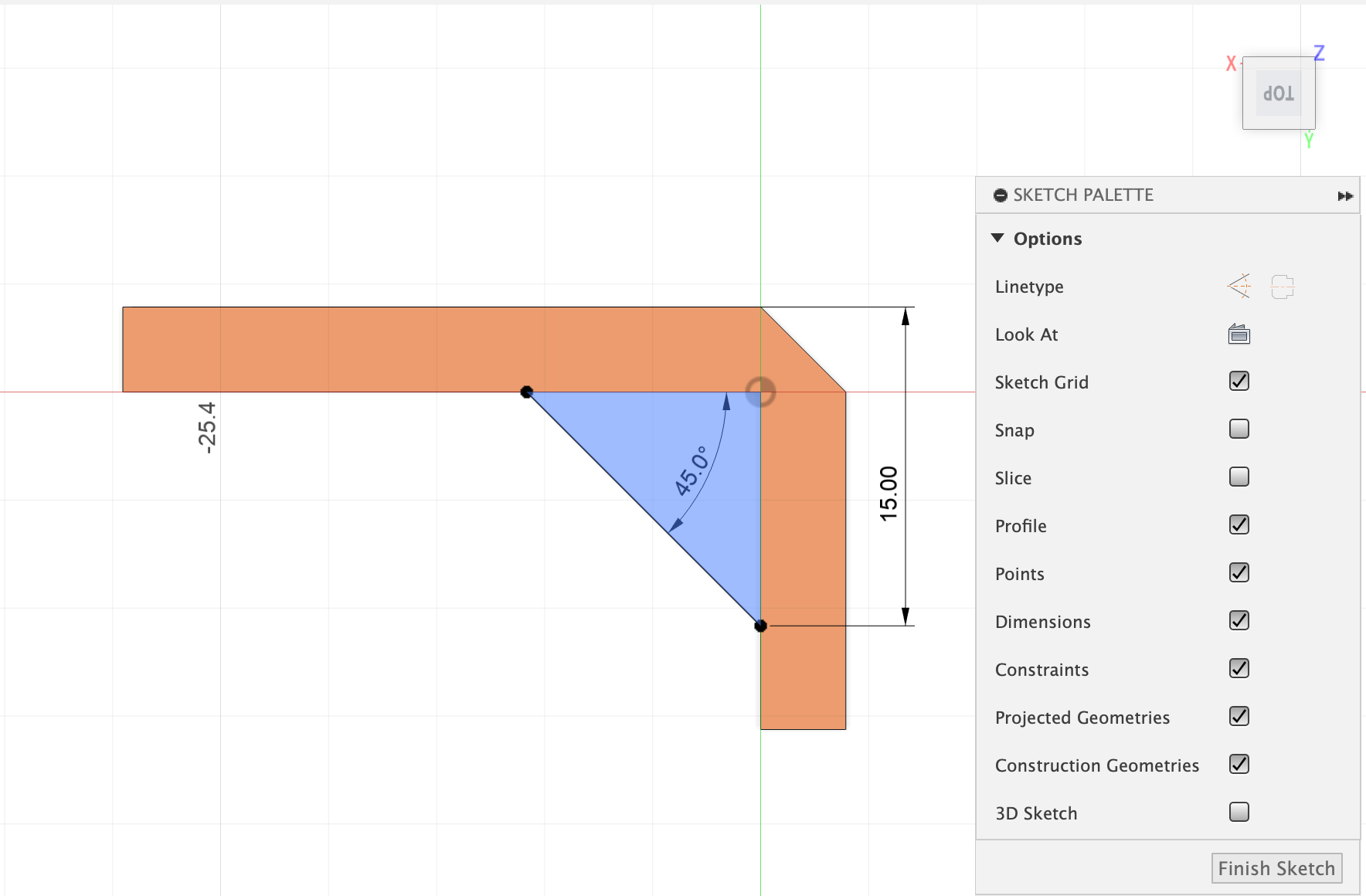

  11. Create a new sketch on the top of the body, named ribs

    Sketch

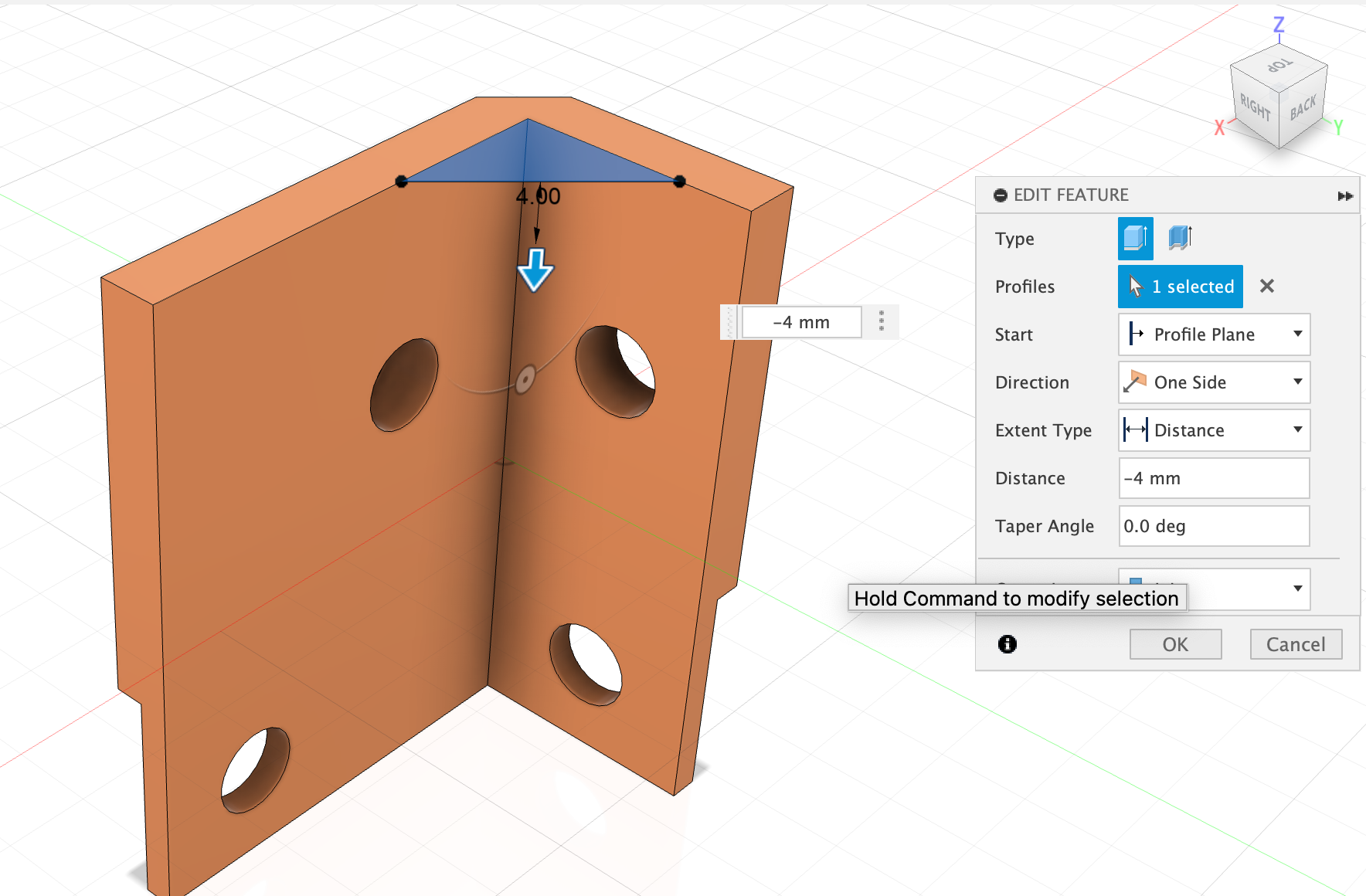

  12. Extrude the sketch:

    Extrude

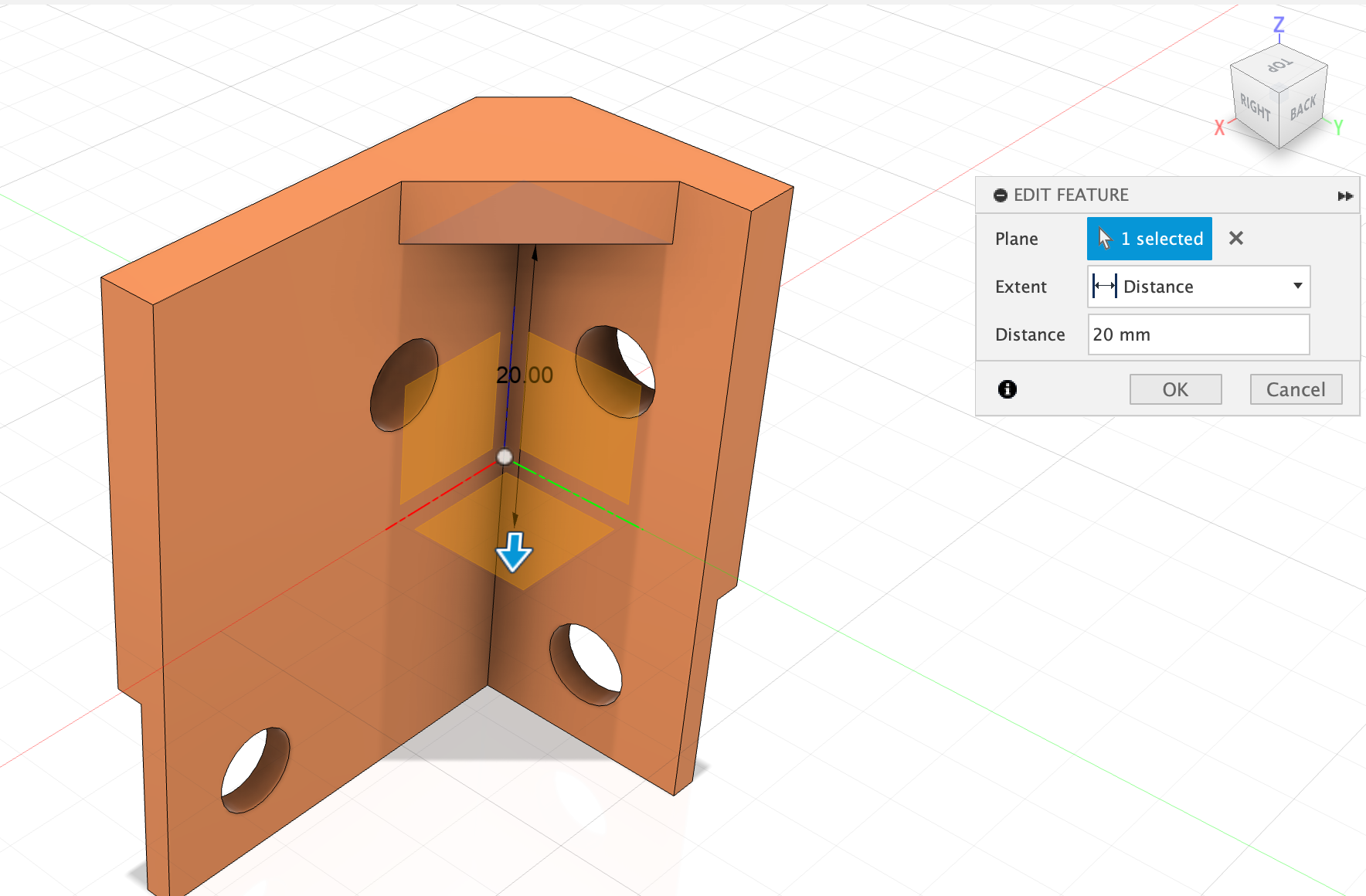

  13. Create a construction plane:

    Extrude

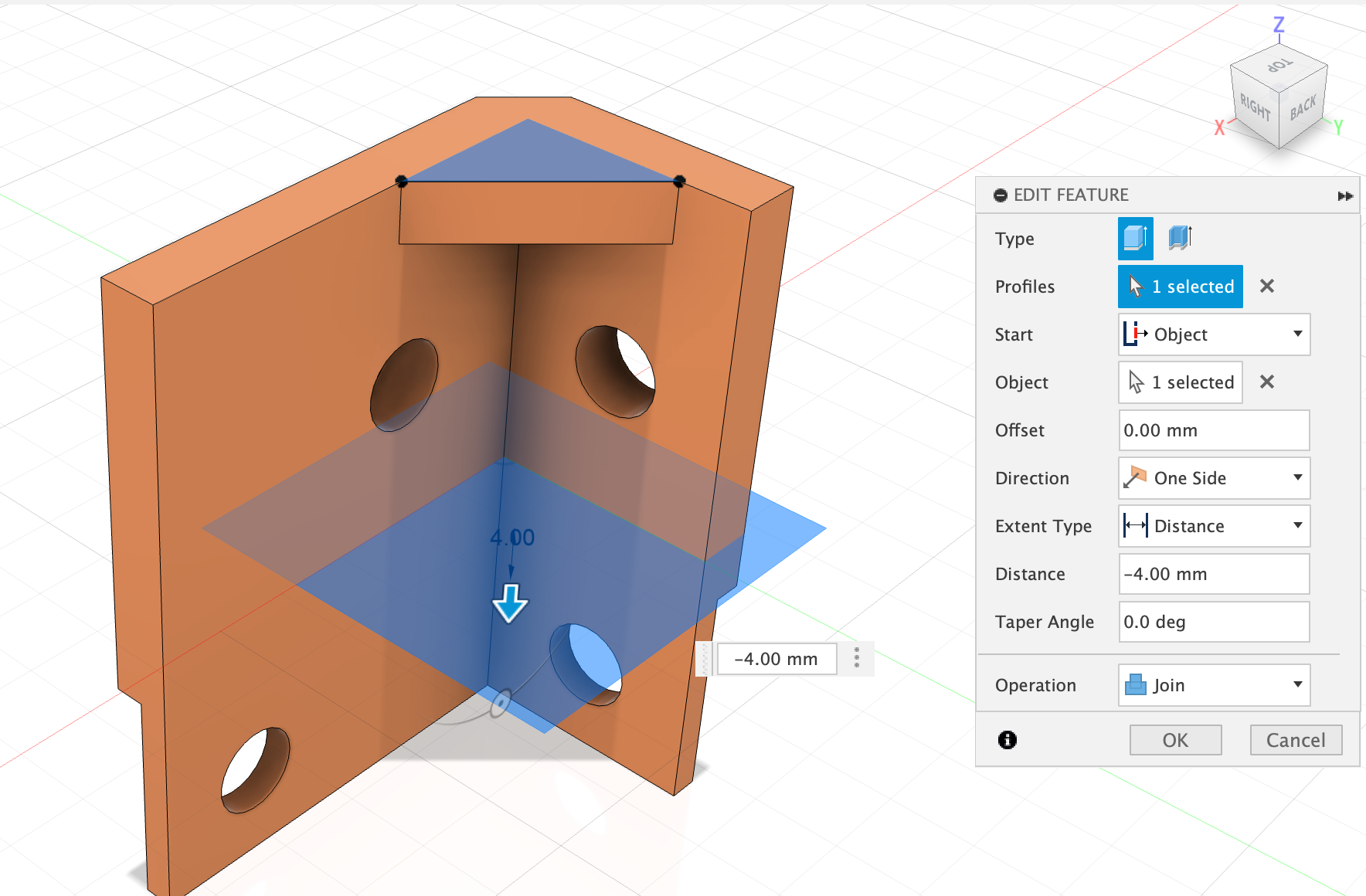

  14. Extrude the ribs sketch:

    Extrude

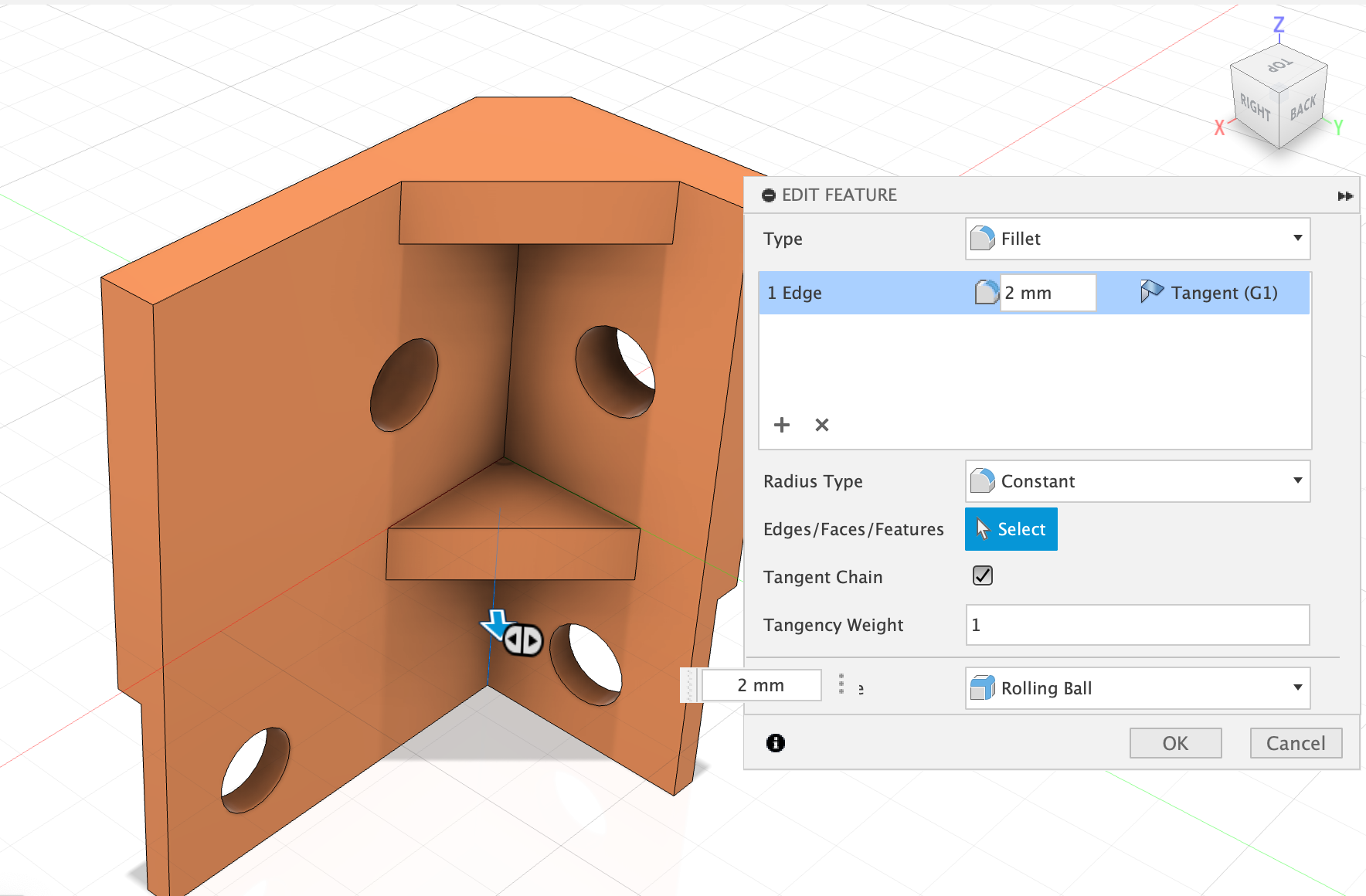

  15. Fillet the inside bottom edge:

    Fillet
