Create Hinge from Profile
Let's create the lower eyelid hinge from the new profile
By Kevin McAleer, 2 Minutes
Lower Hinge
The lower eyelid hinge needs to fit over the upper eyelid hinge, so we can use that to extrude from.

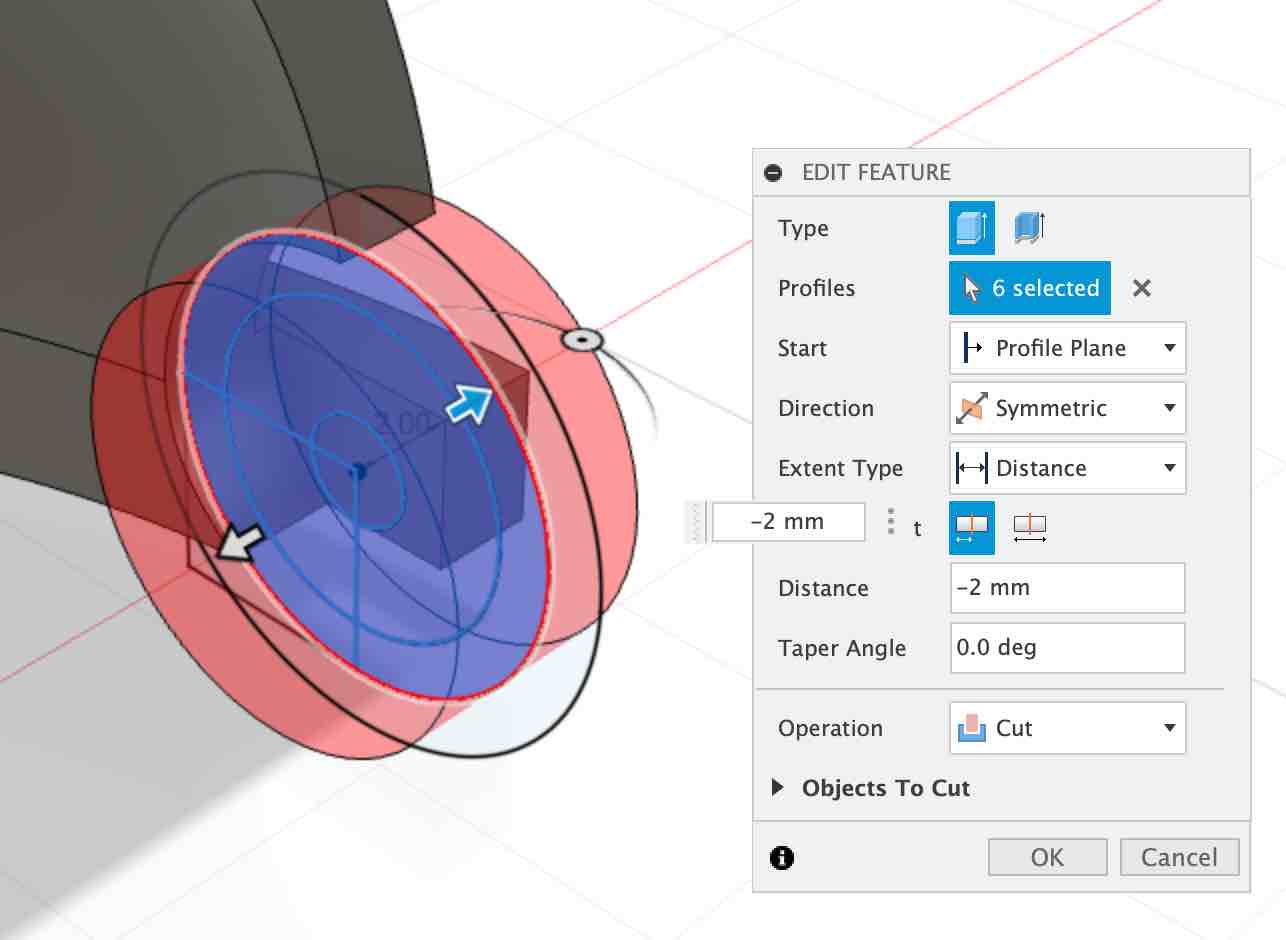

- Extrude - Select the circle profiles and extrude by 2mm symmetrically.
-

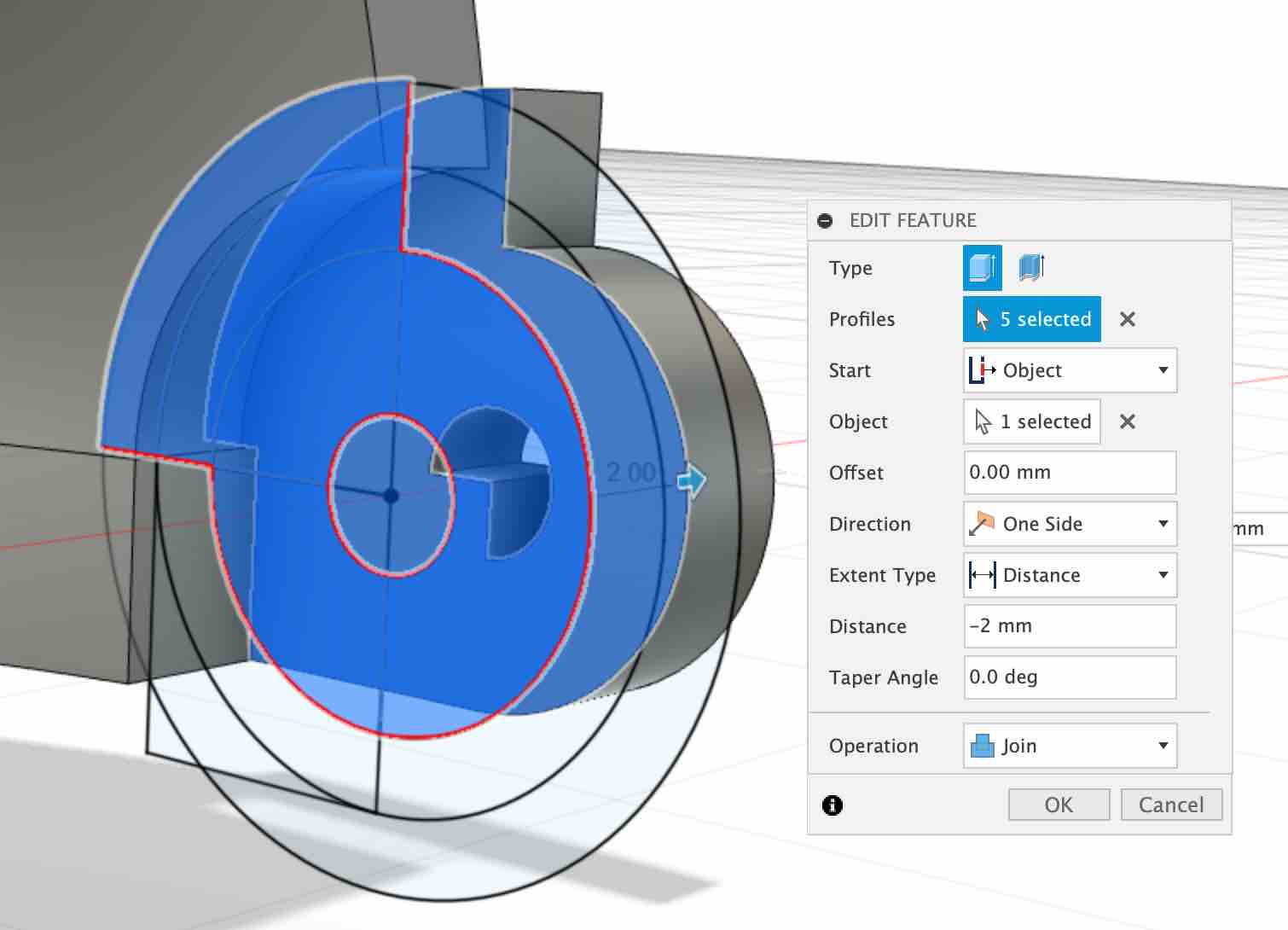

Join - Extrude the profile below by -2mm:
- Set the
starttoobject, and use the flat section as the newobjectprofile
- Set the
- Extrude the screw hole - extrude the middle screw hole profile, setting the distance to
all
Extrude to Object

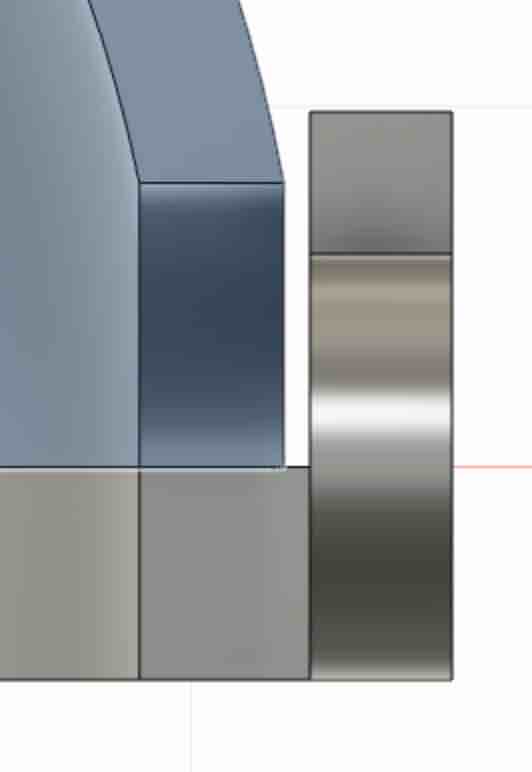

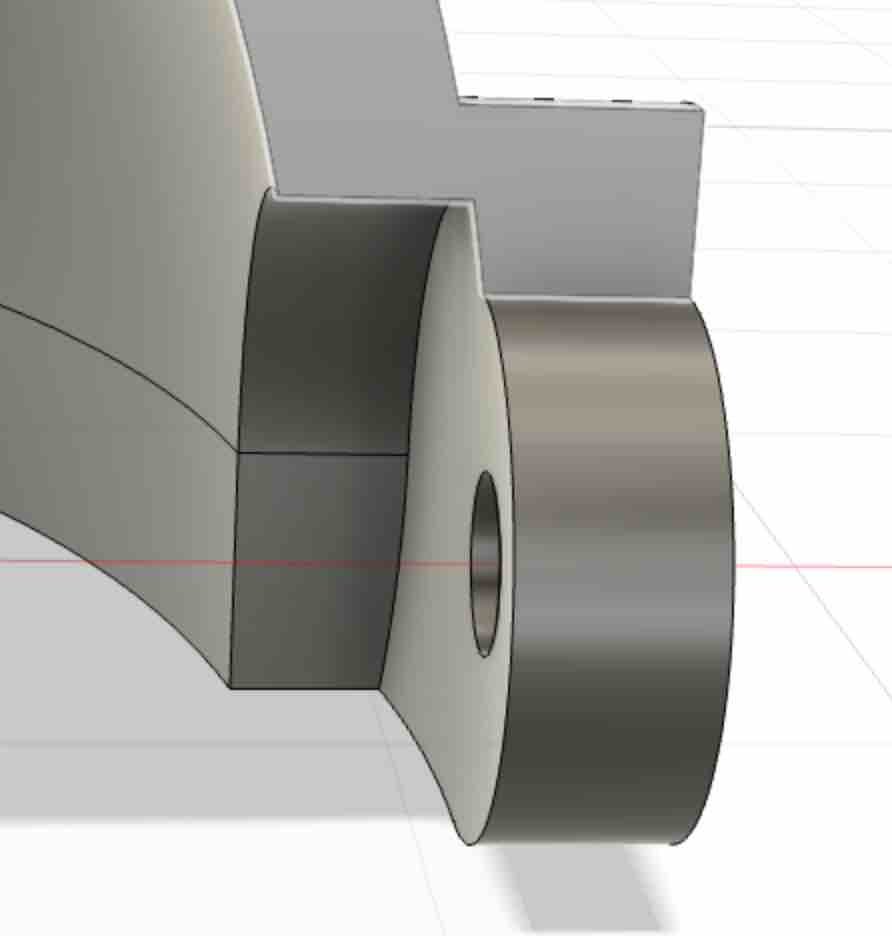

There is a small gap between our parts that we need to fill.

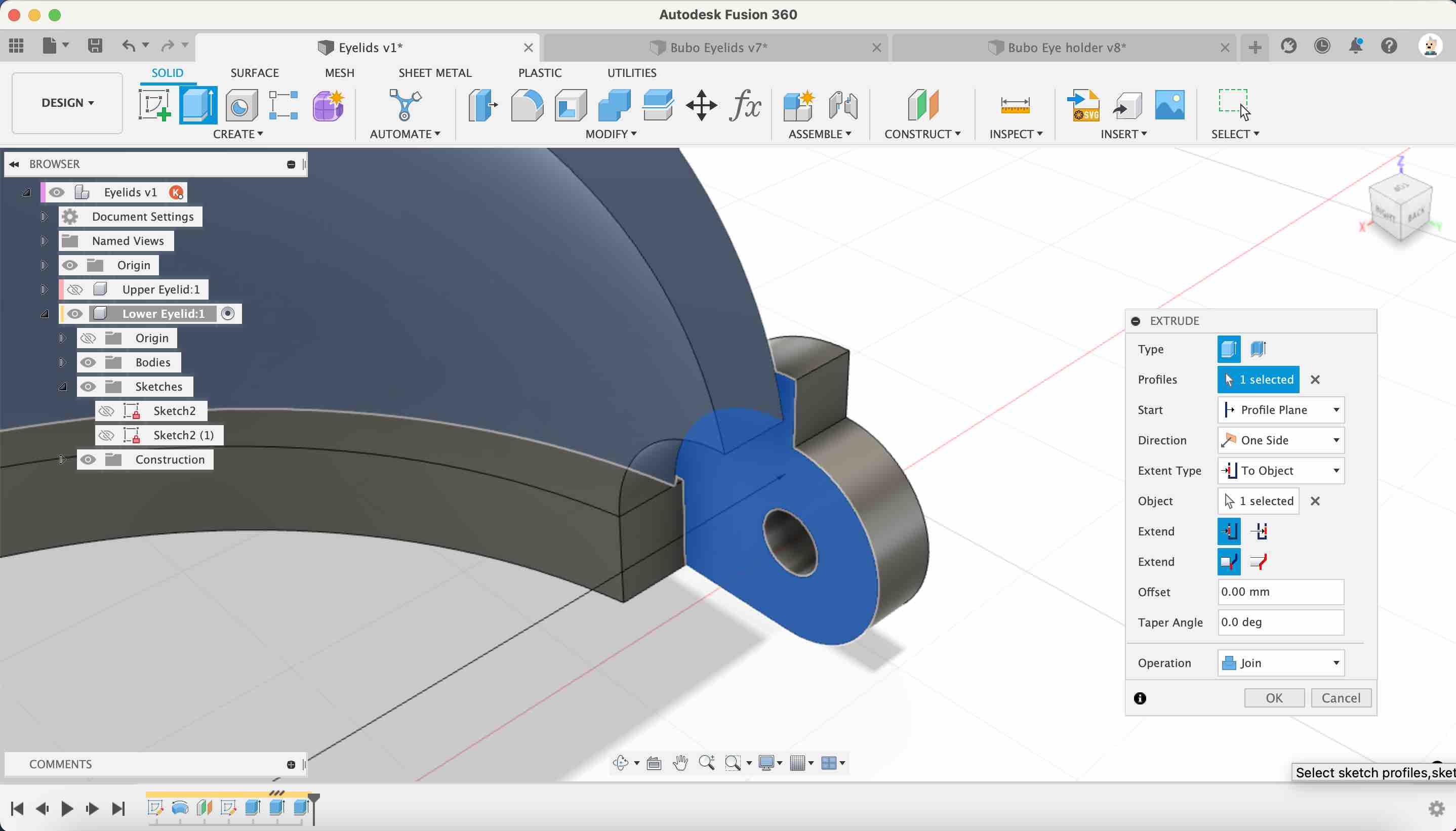

Fusion has a handy feature for this in the extrude dialog box in the extent type called to object.
Mirror
Let’s mirror this new feature.
- Mirror - Click on the
CREATEand Mirror function, then select the 4 features that have just been created and the origin as the mirror plane.
Check your understanding
Quick quiz 1 of 2
Why is the lower eyelid made as a separate component?
Joints connect components, so each moving part needs its own component.
Quick quiz 2 of 2
The lower eyelid hinge has a 10mm circle as well. Why is it bigger than the upper hinge?
